CS-KITPRO-K9 – Codec Pro and Quad Camera – 8 Phantom Mic Inputs – Cisco Room Kit Pro
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
CS-KITPRO-K9 Description

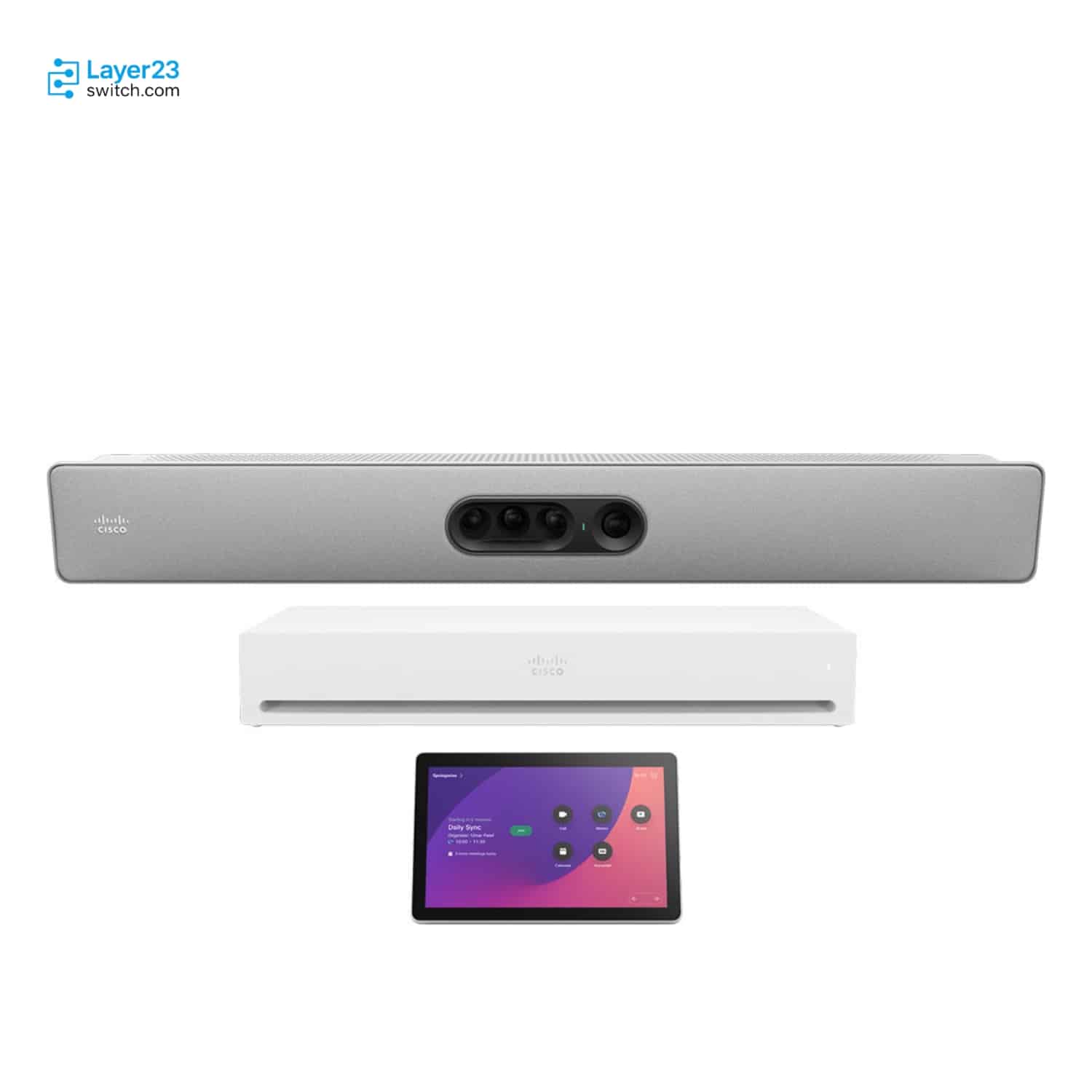

The CS-KITPRO-K9 is the Cisco Room Kit Pro, an integrator-oriented large-room bundle of three ordered components: the CS-CODEC-PRO Codec Pro, the CS-QUADCAM Quad Camera and the CS-T10-TS-L Room Navigator on a table stand, carrying compliance models TTC6-13, TTC8-10 and TTC5-15. The Quad Camera combines four 20MP CMOS sensors under machine intelligent switching into a single 1080p output at up to 60 fps, covering the room with an 83-degree wide lens and three 50-degree tele-lenses while automatic group framing, speaker tracking and intelligent people framing keep participants in view. What separates this bundle from an appliance-style video bar is the codec's installed-audio capability: eight 48V phantom powered microphone inputs on Euroblock connectors, each with its own echo canceler and noise reduction and each settable to balanced line level, alongside up to eight Cisco IP microphones over PoE and third-party systems over AES67. Three HDMI outputs drive displays at up to 3840 x 2160, dedicated Ethernet ports handle camera pairing and Room Navigator control separately from the LAN, and the system runs RoomOS 10.x or later with interoperability into Microsoft Teams, Zoom and Google Meet.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
CS-KITPRO-K9 |
|
Bundle scope |
Codec Pro CS-CODEC-PRO, Quad Camera CS-QUADCAM and Room Navigator CS-T10-TS-L |
|
Camera |
Four 20MP CMOS sensors with single 1080p output at up to 60 fps |
|
Camera optics |
5x zoom with 83-degree wide lens and three 50-degree tele-lenses |
|
Analog microphone inputs |
Eight 48V phantom powered Euroblock inputs with individual echo cancelers |
|
IP microphone support |
Up to eight Cisco IP microphones over PoE |
|
Video outputs |
Two HDMI up to 3840 x 2160 at 60 fps plus one HDMI up to 3840 x 2160 at 30 fps |
|
Network interface |
One LAN port, two camera pairing ports and two PoE ports for control and peripherals |
|
Software compatibility |
RoomOS 10.x or later with Microsoft Teams, Zoom and Google Meet interoperability |
Product Performance
Key Features
Eight phantom powered Euroblock inputs each carry their own echo canceler and noise reduction and can be set to balanced line level, so a ceiling microphone design attaches directly to the codec instead of requiring a separate audio processor in the rack.
The same codec accepts up to eight Cisco IP microphones over PoE alongside the analog inputs, which lets a refit reuse existing wired microphones while adding IP devices on the same system rather than choosing one path.
Two Ethernet ports exist purely for direct camera pairing and control, and two more PoE ports serve the Room Navigator and IP peripherals, so camera and control traffic never consumes corporate switch ports or a room VLAN.
Machine intelligent switching across four 20MP sensors delivers group framing and speaker tracking without pan-tilt motors, removing the mechanical wear point from a room that runs back-to-back sessions.
Two HDMI outputs at 3840 x 2160 at 60 fps plus a third at 30 fps let a single codec feed a three-screen room directly, which removes an HDMI distribution amplifier from the AV design.
RoomOS 10.x or later joins Webex natively and interoperates with Microsoft Teams over VIMT and WebRTC, Zoom over SIP and Google Meet over WebRTC, and the same hardware also runs Microsoft Teams Rooms on Android.
Application Scenarios
Installed in boardrooms where ceiling or table microphones are wired back to a rack, with the Codec Pro accepting those analog runs directly on its Euroblock inputs.
Deployed in large or divisible rooms that need multiple microphone zones and several front-of-room displays fed from one codec position.
Placed in AV cabinets alongside other rack equipment, with the 17.1-inch wide Codec Pro chassis sitting in the rack while the camera and controller mount in the room.
Product Comparison
|
Parameter |
CS-KITPRO-K9 |
CS-KITPRO-C-K9 | |
|---|---|---|---|
|
Cisco ordering description |
Cisco Room Kit Pro |
Cisco Room Kit Pro with Quad Camera Carbon Black |
Cisco Room Kit Pro with PTZ 4K Camera |
|
Codec component |
CS-CODEC-PRO |
CS-CODEC-PRO |
CS-CODEC-PRO |
|
Camera component |
CS-QUADCAM Quad Camera in First Light |
CS-QUADCAM2-C Quad Camera in Carbon Black |
Cisco PTZ 4K Camera |
|
Camera type |
Fixed four-sensor array with no moving optics |
Fixed four-sensor array with no moving optics |
Motorized pan and tilt camera |
|
Camera coverage |
83-degree wide lens plus three 50-degree tele-lenses |
83-degree wide lens plus three 50-degree tele-lenses |
70-degree horizontal field of view with pan range plus or minus 170 degrees |
|
Room Navigator component |
CS-T10-TS-L in First Light table stand |
CS-T10-TS-L in First Light table stand |
CS-T10-TS-L in First Light table stand |
|
Analog microphone inputs |
Eight 48V phantom powered Euroblock inputs |
Eight 48V phantom powered Euroblock inputs |
Eight 48V phantom powered Euroblock inputs |
- CS-KITPRO-K9 and CS-KITPRO-C-K9 differ only in the Quad Camera finish, First Light against Carbon Black, so the codec, controller and every audio and video capability carry across and the choice reduces to matching room joinery.
- The real functional split in this group is CS-KITPRO-PTZ4K-K9, which trades the fixed four-sensor array for a motorized camera with plus or minus 170 degree pan; that buys reach into a long room or a presenter position away from the screen, at the cost of moving optics and a narrower 70-degree native field of view.
- For deciding which SKU to order, settle whether the room needs mechanical pan and tilt first, because that is the only capability difference here; the Codec Pro, its eight phantom powered microphone inputs and the bundled Room Navigator are identical across all three bundles.
Selection Guide
1. Fixed Array Suits Table-Seated Rooms
CS-KITPRO-K9 frames a seated group from four sensors with no moving parts, which fits standard boardroom geometry; a room where the subject moves along a stage or stands well off-axis is better served by CS-KITPRO-PTZ4K-K9 and its motorized pan and tilt.
2. Carbon Camera Changes Finish Only
CS-KITPRO-C-K9 substitutes the Carbon Black Quad Camera component and leaves codec, controller and capability untouched, so a dark room specification is met without any technical trade-off or added line items.
3. Bundle Scope Before Component Ordering
The bundle already contains CS-CODEC-PRO, CS-QUADCAM and CS-T10-TS-L as a single orderable PID, so ordering those components separately alongside the bundle duplicates hardware that ships in the box.
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
Compliance models |
Confirm the delivered components report TTC6-13, TTC8-10 and TTC5-15. |
Confirms the codec, camera and controller are all accounted for under the single bundle PID. |
|
Quad Camera power adapter |
Confirm PSU-12VDC-70W-GR is included, using PSU-12VDC-70W-GR= when a spare is needed. |
Cisco supplies this adapter only in Quad Camera bundles, so a replacement camera without it cannot be powered. |
|
Euroblock microphone wiring |
Confirm field microphone terminations match the Euroblock connector and the 48V phantom power setting per channel. |
Each input is individually configurable, and a mismatch between phantom power and a line-level source damages or mutes the channel. |
|
IP microphone PoE source |
Confirm an external PoE switch is available when more Cisco IP microphones are used than the codec ports can power. |
Cisco notes IP microphone deployments may require an external PoE switch, which is easy to omit from a room bill of materials. |
|
Display output mix |
Confirm which display takes the 30 fps output when three screens are used. |
Two outputs run at 60 fps and one at 30 fps, so assigning the wrong screen to the slower output degrades the main video position. |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | CS-KITPRO-K9 | Bundle scope | CS-CODEC-PRO Codec Pro, CS-QUADCAM Quad Camera and CS-T10-TS-L Room Navigator table stand |
| Compliance model numbers | TTC6-13, TTC8-10 and TTC5-15 | Camera sensors | Four 20MP CMOS image sensors with machine intelligent switching into a single 1080p HD output |
| Camera rate and sensor | Up to 60 fps on 1/1.7 CMOS at 5056 x 3888 pixel resolution | Camera optics | 5x zoom at f/2.0 with 83 degrees horizontal on the wide lens and 50 degrees horizontal on three tele-lenses |
| Camera intelligence | Automatic group framing with audio and face detect, speaker tracking, intelligent people framing, automatic focus, brightness and white balance | Video outputs | Two HDMI up to 3840 x 2160 at 60 fps and one HDMI up to 3840 x 2160 at 30 fps, all with CEC 2.0 |
| Analog audio inputs | Eight 48V phantom powered microphone inputs on Euroblock connectors, each with separate echo cancelers and noise reduction and each settable to balanced line level | Digital audio inputs | Three HDMI digital stereo inputs and two USB-A digital stereo inputs |
| IP audio inputs | Up to eight Cisco IP microphones over PoE for directional voice pickup, which may require an external PoE switch | Third-party audio | Connectivity with third-party audio systems over AES67 |
| Loudspeakers | Quad Camera loudspeaker system with a single full-range driver and dual low-frequency drivers | Network interface | One Ethernet RJ-45 10/100/1000 for LAN, two for direct camera pairing and control, and two with PoE for Room Navigator and IP room peripherals |
| Wireless | Wi-Fi 802.11a/b/g/n/ac on 2.4 GHz and 5 GHz at 2×2 MIMO, absent in non-radio versions | Bandwidth | Up to 20 Mbps |
| Call control | Cisco Collaboration Cloud and Webex | Software compatibility | RoomOS 10.x or later with Microsoft Teams over VIMT and WebRTC, Zoom over SIP, Google Meet over WebRTC, plus Microsoft Teams Rooms on Android |
| Camera power | 100 to 240 VAC at 50/60 Hz with 12V DC input, adapter PSU-12VDC-70W-GR supplied in Quad Camera bundles | Camera power spare | PSU-12VDC-70W-GR= |
| Codec Pro dimensions | 17.1 x 2.6 x 9.1 in (43.6 x 6.6 x 23.1 cm) at 7.3 lb (3.3 kg) |
Get More Information
Need pricing, stock, or shipping details for the CS-KITPRO-K9 ? Layer23-Switch can help you check current availability, lead time, and delivery options for this. Send us the part number, quantity, and destination country via live chat or email sales@layer23-switch.com for a fast quotation.
Quality Certifications
Customer Reviews
Questions & Answers
-
How is CS-KITPRO-K9 classified?
-
How many microphone inputs does CS-KITPRO-K9 offer?
-
Does CS-KITPRO-K9 need an external DSP for installed audio?
-
What is the difference between CS-KITPRO-K9 and CS-KITPRO-PTZ4K-K9?
-
Can CS-KITPRO-K9 feed three displays without a distribution amplifier?
-
Which Room Kit Pro variant supplies a Carbon Black camera instead of CS-KITPRO-K9?
-
When should CS-KITPRO-PTZ4K-K9 be ordered instead of CS-KITPRO-K9?
-
How does CS-KITPRO-K9 interoperate with Microsoft Teams and Zoom?
