CS-MIC-TABLE-J Description

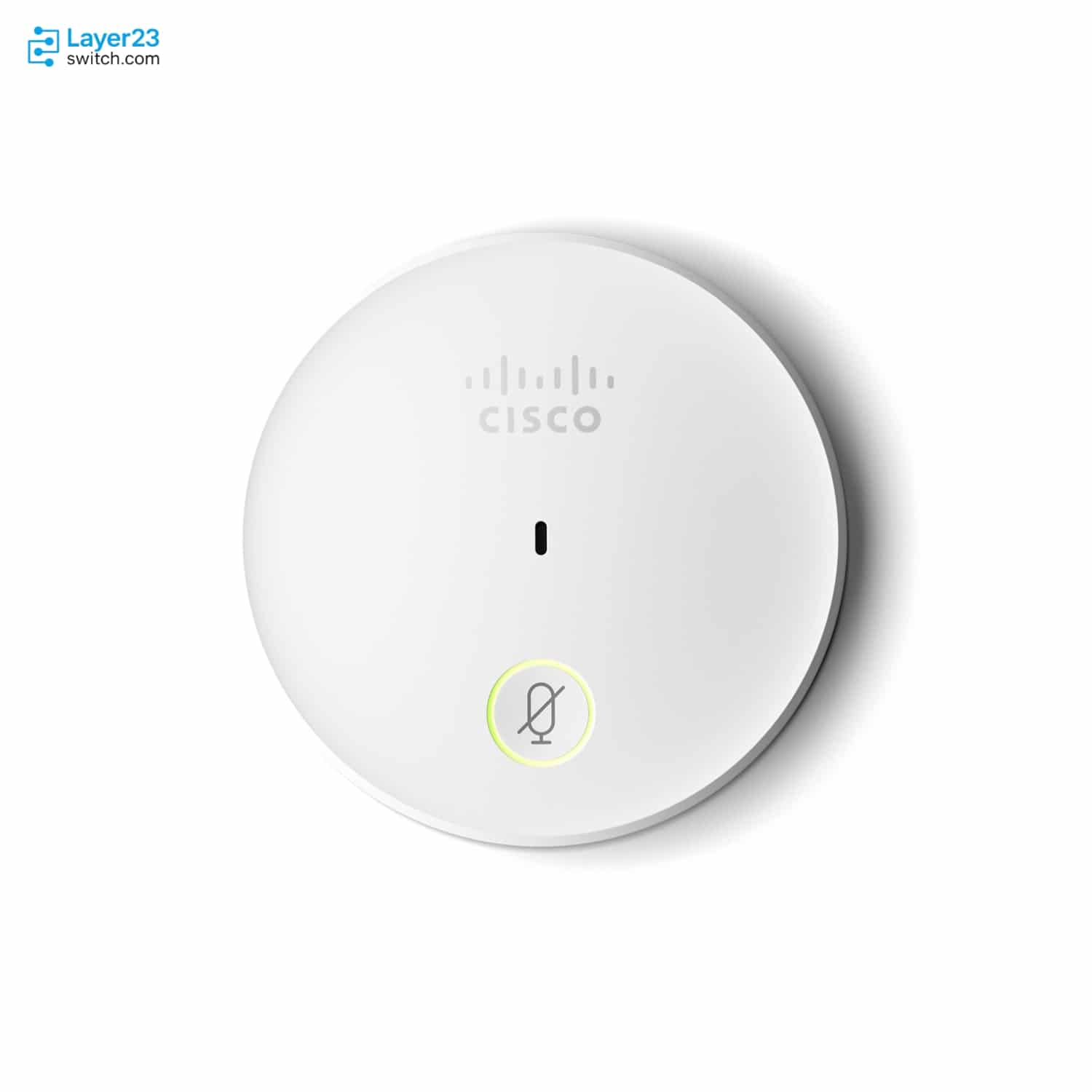

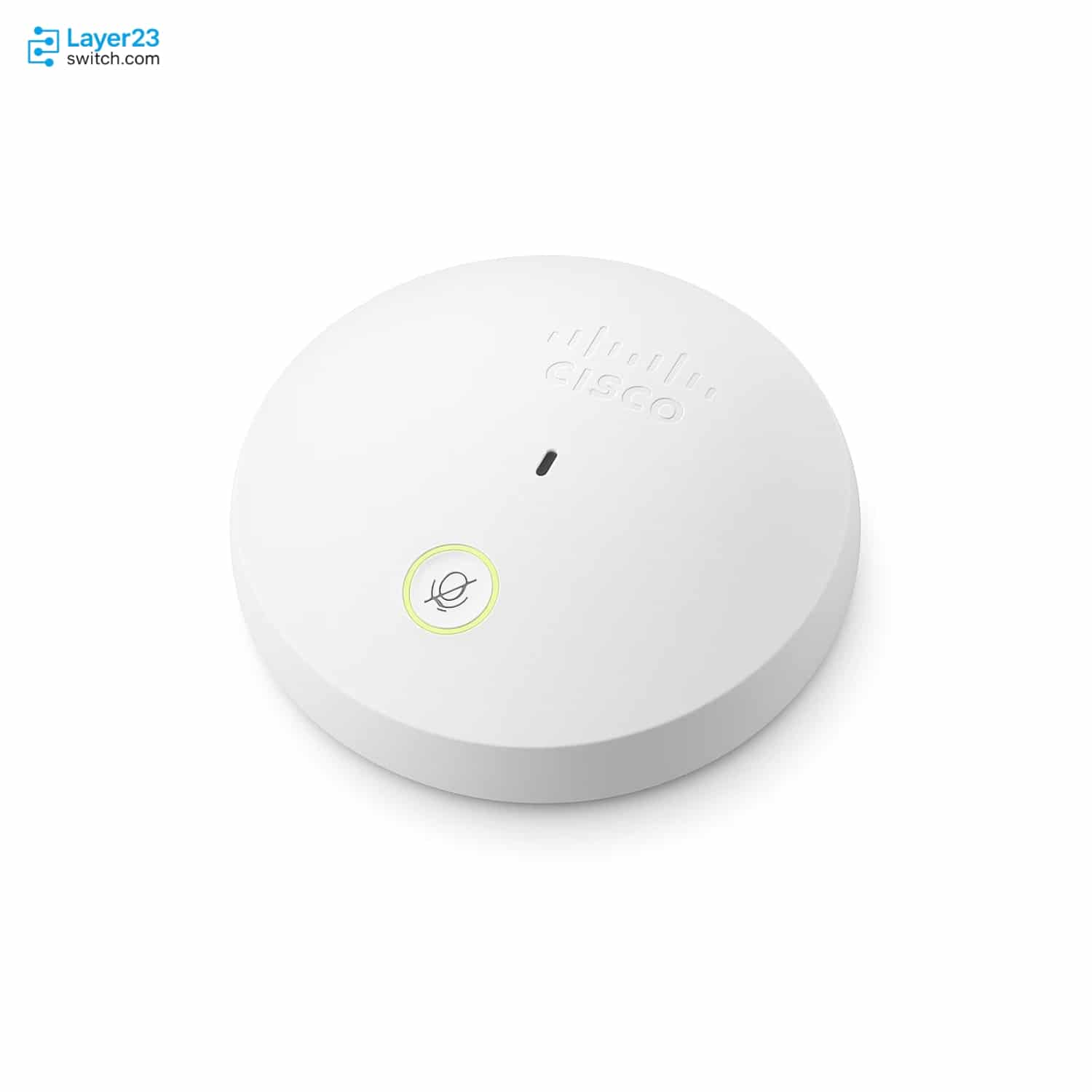

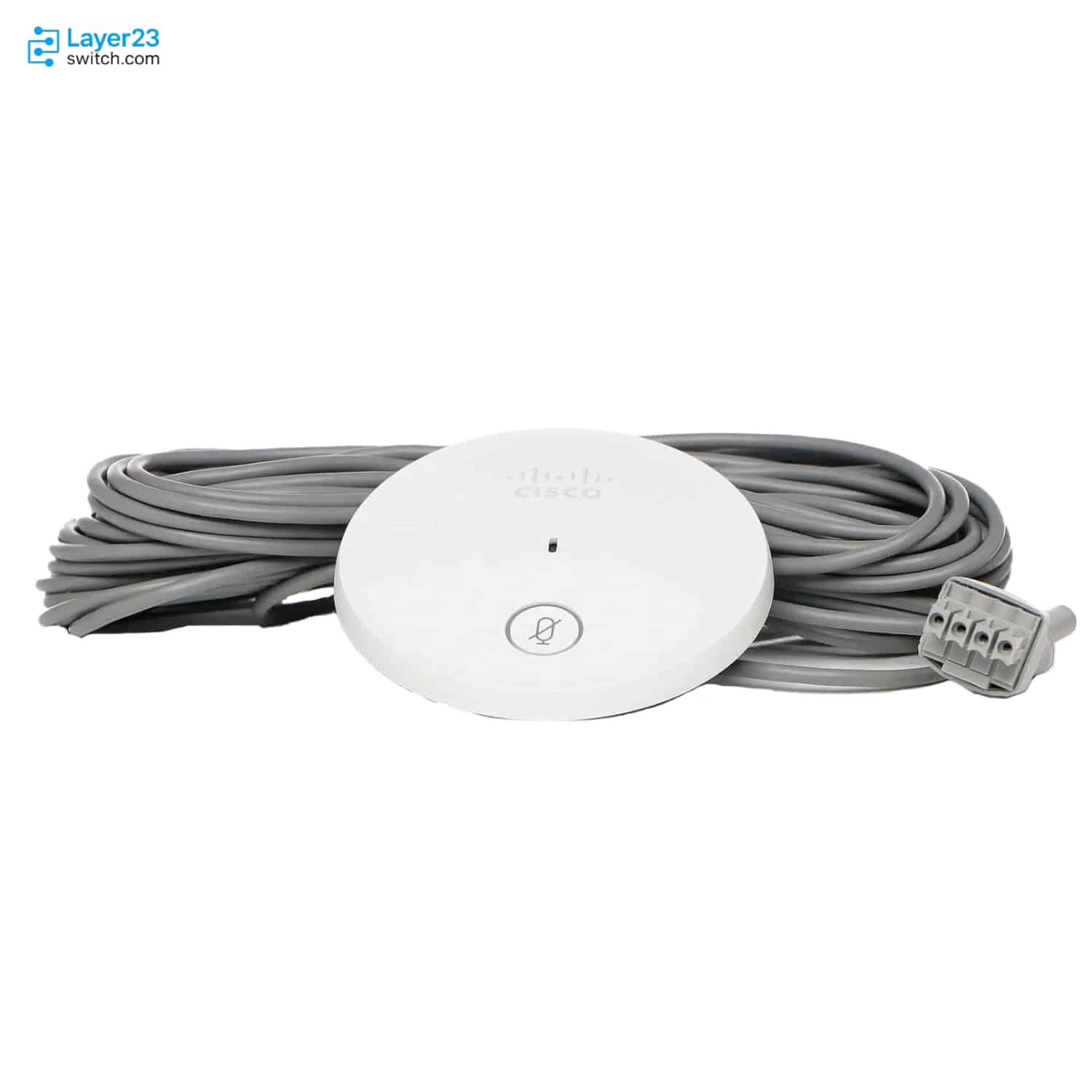

The CS-MIC-TABLE-J is a Cisco Table Microphone, a balanced omnidirectional boundary-layer microphone for fixed-table meeting rooms that connect through a codec audio input. The microphone covers 80 Hz to 20 kHz with -34 dB free-field sensitivity and a 1.5 m pickup radius over 360 degrees, on a 7.5 m cable with a 4-pin mini jack. The microphone takes 9V or 52V phantom power from the codec and does not support adaptive voice capture, speaker tracking or scaling through an Ethernet switch.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
CS-MIC-TABLE-J |
|
Cisco ordering description |
Cisco Table Microphone with 4-pin mini jack connector, 7.5 metres cable |
|
Description |
Balanced omnidirectional table microphone, boundary layer type |
|
Frequency range |
80 Hz to 20 kHz, plus or minus 6 dB |
|
Free field sensitivity |
-34 dB plus or minus 3 dB rel 1V/Pa at 1 kHz |
|
Pickup range |
1.5 m radius with 360-degree coverage |
|
Phantom power |
9V or 52V |
|
Dimensions |
6.39 cm diameter by 1.09 cm high (2.52 in by 0.43 in) |
|
Weight |
0.126 kg (0.28 lb) |
Product Performance
Key Features
The microphone attaches to the Room Bar, Room Kit, Room 55, Room 70, SX, MX, Board Pro and Room Panorama families, which covers both current and older Cisco room systems.
Frequency response is 80 Hz to 20 kHz within plus or minus 6 dB, with a signal-to-noise ratio of at least 70 dB.
The codec supplies 9V or 52V phantom power, so the microphone uses one analogue audio input and no Ethernet port or PoE budget.
The 6.39 cm disc recesses into the table for a flush finish or rests on a magnetic table plate where drilling is not permitted.
A mute and unmute button on the unit, with an LED showing mute status, lets participants silence the room without the touch controller.
The 4-pin mini jack connector and 7.5 m cable fit codec inputs that use mini jack wiring, and a 9 m extension cable adds length where the run is longer.
Application Scenarios
In meeting rooms that still run SX10, SX20, SX80, MX700 or MX800 systems, the microphone connects to the codec audio input and picks up the table within a 1.5 m radius.
In a meeting room with no free network port or PoE budget, the microphone plugs into the analogue input of its codec, which supplies the 9V or 52V phantom power.
On a table that cannot be drilled, the microphone rests on a magnetic table plate instead of being recessed into the surface.
Selection Guide
CS-MIC-TABLE-J suits codecs that supply 9V or 52V phantom power to a 4-pin mini jack input, including SX10, SX20, SX80, MX700, MX800, Room 55 and Room 70 systems that the digital Table Microphone Pro does not support. Codecs with a 4-pin Euroblock input take CS-MIC-TABLE-E on a 9-metre cable. Rooms that need adaptive voice capture, speaker tracking or Ethernet scaling through a switch take CS-MIC-ARRAY-T.
Ordering Checklist
- Hosts: CS-MIC-TABLE-J attaches to Room Bar, Room Bar Pro, Room Kit, Room Kit Plus, Room Kit EQ and EQX, Room Kit Pro, Room 55/55 Dual, Room 70, Room 70 G2, SX10, SX20, SX80, MX700, MX800, Board Pro 55/75 in both generations, and Room Panorama Series.
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | CS-MIC-TABLE-J | Cisco ordering description | Cisco Table Microphone with 4-pin mini jack connector, 7.5 meters cable, ordered as CS-MIC-TABLE-J= |
| Product compatibility | Room Bar, Room Bar Pro, Room Kit, Room Kit Plus, Room Kit EQ, Room Kit EQX, Room Kit Pro, Room 55, Room 55 Dual, Room 70, Room 70 G2, SX10, SX20, SX80, MX700, MX800, Board Pro 55/75, Board Pro 55/75 G2 and the Room Panorama Series | Connector type | 4-pin mini jack, with a 4-pin Euroblock version available separately as CS-MIC-TABLE-E= |
| Speaker tracking support | Not supported on this model | Description | Balanced omnidirectional table microphone, boundary layer type |
| Cable length | 7.5 metres | Free field sensitivity | -34 dB plus or minus 3 dB rel 1V/Pa at 1 kHz |
| Pickup range | 1.5 m radius with 360-degree coverage | Mute functionality | LED showing mute status with a mute and unmute button on the device |
| Colour | White | Adaptive voice capture | Not supported on this model |
| Scalability via switch | Not supported; the microphone connects to a codec audio input rather than an Ethernet network | Automatic positioning | Not supported on this model |
| Audio encryption | AES-128 audio encryption is not supported on this model | Extension cable | CAB-MIC-EXT-J= adds 9 metres for 4-pin mini jack cables |
| Spare part numbers | CAB-MIC-TABLE-J= spare cable for the 4-pin mini jack connector and CS-MIC-TABLE-PLA= spare table-top metal plate in packs of three | Cloud device management | Not supported on this model |
| Frequency range | 80 Hz to 20 kHz, plus or minus 6 dB | Phantom power | 9V or 52V |
| Signal-to-noise ratio | Minimum 70 dB | Dimensions | Round shape at 6.39 cm diameter by 1.09 cm (2.52 in diameter by 0.43 in) |
| Mounting | Tabletop, either recessed into the table or placed on a magnetic table plate |
