CS-KIT-EQ-K9 – Codec EQ and Quad Camera – Room Navigator Included – Cisco Room Kit EQ
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
CS-KIT-EQ-K9 Description

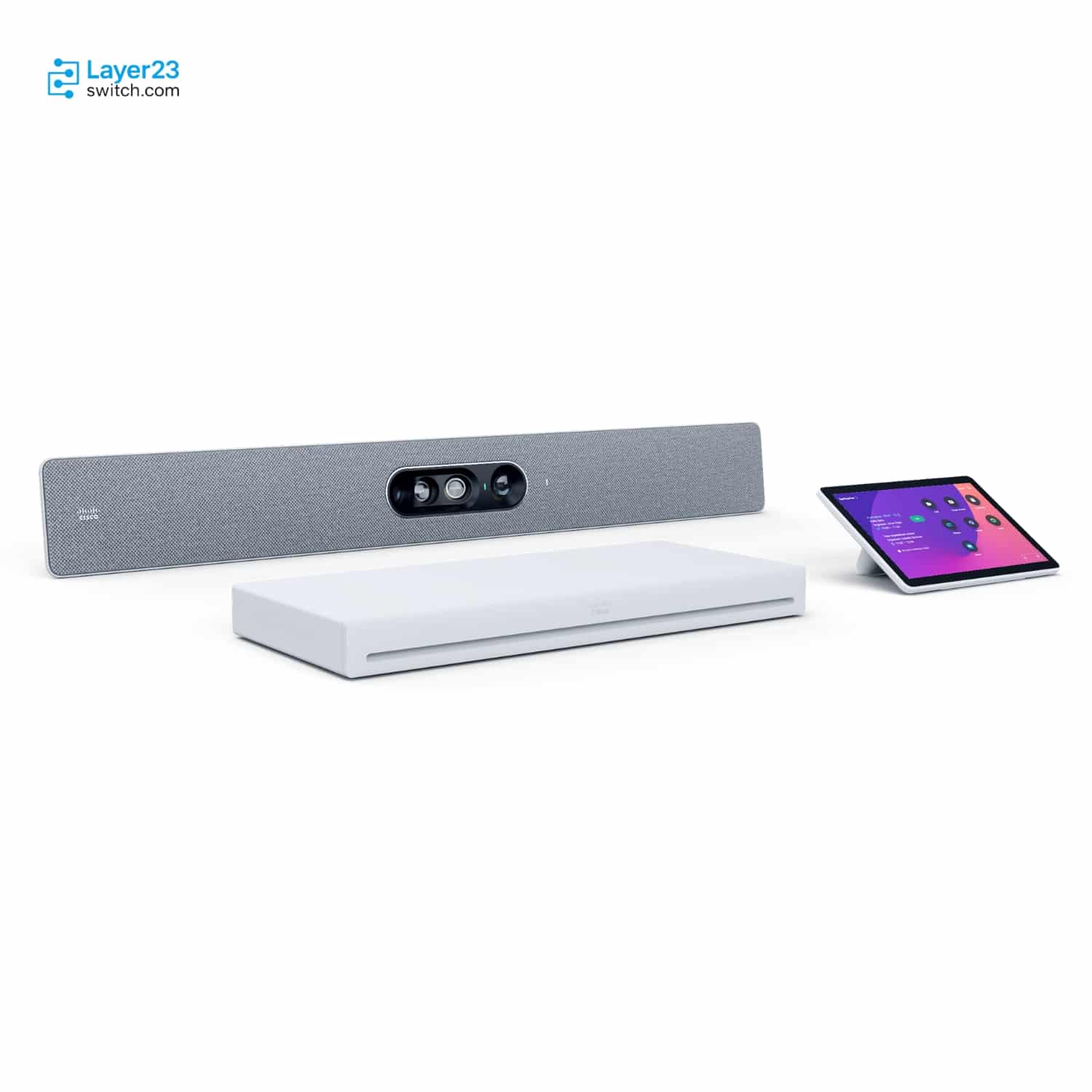

The CS-KIT-EQ-K9 is the Cisco Room Kit EQ in the First Light finish, a large-room collaboration bundle that ships as three ordered components: the CS-CODEC-EQ-K9 Codec EQ computing engine, the CS-QUADCAM2 Quad Camera and the CS-T10-TS-L Room Navigator for Table. The Quad Camera combines four CMOS sensors of up to 20MP each with machine intelligent switching, producing a single 1080p output while automatic group framing, speaker tracking and meeting zones keep the view on people inside a defined perimeter rather than passers-by outside a glass wall. Its 83-degree wide lens and three 50-degree tele-lenses cover the room without a pan-tilt mechanism. The Codec EQ drives up to three HDMI displays at 3840 x 2160 at 60 fps, accepts three HDMI and one USB-C source, and carries four PoE++ 802.3bt ports sharing a 90W budget that power and control the camera, the Room Navigator and AV over IP peripherals including up to eight Cisco IP microphones. A single USB-C cable passes the camera, microphone and speakers through to a connected laptop, and the bundle registers to Cisco Unified Communications Manager, Cisco Expressway or Webex over wired Ethernet or Wi-Fi 802.11a/b/g/n/ac/ax.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
CS-KIT-EQ-K9 |
|
Bundle scope |
Codec EQ CS-CODEC-EQ-K9, Quad Camera CS-QUADCAM2 and Room Navigator for Table CS-T10-TS-L |
|
Camera |
Four CMOS sensors at up to 20MP each with single 1080p output |
|
Camera optics |
7x zoom with 83-degree wide lens and three 50-degree tele-lenses |
|
Video outputs |
Three HDMI outputs up to 3840 x 2160 at 60 fps |
|
PoE++ ports |
Four 802.3bt Ethernet ports sharing a 90W power budget |
|
Audio inputs |
Three analog mini jack, three HDMI, USB-C, USB-A and up to eight Cisco IP microphones |
|
Wireless |
Wi-Fi 802.11a/b/g/n/ac/ax on 2.4 GHz, 5 GHz and 6 GHz with 2×2 MIMO |
|
Power consumption |
18W in meeting, 18W idle and 15W display-off standby |
Product Performance
Key Features
Four sensors switch under machine intelligence instead of a motorized pan-tilt head, so group framing and speaker tracking happen with no moving optics to service in a room that runs meetings all day.
Meeting zones restrict framing to people inside a defined boundary, which keeps glass-walled and open-plan rooms from pulling corridor traffic into the shot and removes the usual reason to reposition a camera after fit-out.
The four PoE++ 802.3bt ports share a 90W budget that powers and controls the camera, the Room Navigator and AV over IP peripherals, so a room build can drop structured cable to each device instead of adding local power at every position.
Three HDMI outputs at 3840 x 2160 at 60 fps alongside three HDMI inputs and a USB-C input let one codec serve a multi-screen boardroom without an external switcher in the AV rack.
Up to eight Cisco IP microphones attach over the PoE++ ports and third-party audio systems connect over AES67 with the AV Integrator License, so the same codec covers both a standard room kit and a custom-tuned installed audio system.
Cisco ThousandEyes integration reports network-level diagnostics from the endpoint itself, which shortens the argument about whether a poor meeting was the room hardware or the transport between sites.
Application Scenarios
Installed in large conference rooms and wide workspaces where a single fixed camera bar has to cover the full seating span, with the 83-degree wide lens and three tele-lenses framing groups across the table.
Built into boardrooms running two or three front-of-room screens driven directly from the codec, with the Codec EQ wall-mounted, rack-eared or free-standing in the AV cabinet behind the display wall.
Deployed in training rooms and AV-integrated spaces where ceiling or table microphones attach over the codec Ethernet ports and the 37.4-inch camera bar mounts above or beneath the screen line.
Product Comparison
|
Parameter |
CS-KIT-EQ-K9 |
CS-KIT-EQ-NR-K9 | |
|---|---|---|---|
|
Cisco ordering description |
Cisco Room Kit EQ – First Light |
Cisco Room Kit EQ – Carbon Black |
Cisco Room Kit EQ – No radio |
|
Codec component |
CS-CODEC-EQ-K9 |
CS-CODEC-EQ-K9 |
CS-CODEC-EQ-K9 |
|
Quad Camera component |
CS-QUADCAM2 in First Light |
CS-QUADCAM2-C in Carbon Black |
CS-QUADCAM2 in First Light |
|
Room Navigator component |
CS-T10-TS-L in First Light |
CS-T10-TS-L in First Light |
CS-T10-TS-L in First Light |
|
Wi-Fi and Bluetooth |
802.11a/b/g/n/ac/ax with Wi-Fi 6E and Bluetooth |
802.11a/b/g/n/ac/ax with Wi-Fi 6E and Bluetooth |
Not included in non-radio versions |
|
Camera sensors |
Four CMOS at up to 20MP each |
Four CMOS at up to 20MP each |
Four CMOS at up to 20MP each |
|
PoE++ power budget |
Up to 90W across four 802.3bt ports |
Up to 90W across four 802.3bt ports |
Up to 90W across four 802.3bt ports |
|
Power consumption in meeting |
18W |
18W |
18W |
- The only component that changes between CS-KIT-EQ-K9 and CS-KIT-EQ-C-K9 is the camera finish, CS-QUADCAM2 against CS-QUADCAM2-C; the codec and Room Navigator PIDs are identical, and the Carbon Black bundle still ships the Room Navigator in First Light, so a room specified as all-dark needs a separate plan for the controller finish.
- CS-KIT-EQ-NR-K9 removes Wi-Fi 6E and Bluetooth rather than any AV capability, which suits secure sites that mandate wired-only endpoints while keeping the same four-sensor camera, 90W PoE++ budget and 18W in-meeting draw.
- For deciding which SKU to order, settle the radio policy first because it is the only functional split in this group, then pick the camera finish, since sensor count, zoom range, display outputs and power figures are identical across all three bundles.
Selection Guide
1. When Room Finish Drives The Camera PID
CS-KIT-EQ-K9 puts a First Light camera bar in the room; a dark-fitted boardroom takes CS-KIT-EQ-C-K9 for the Carbon Black CS-QUADCAM2-C at the same AV capability, with the caveat that the bundled Room Navigator stays First Light in both.
2. Wired-Only Sites Take The No-Radio Bundle
Sites whose policy forbids on-board wireless move to CS-KIT-EQ-NR-K9, which drops Wi-Fi 6E and Bluetooth while keeping the four-sensor camera and codec intact; ordering the standard bundle into such a site leaves a radio that has to be administratively disabled instead of absent.
3. Fixed Framing Over Mechanical Pan-Tilt
CS-KIT-EQ-4K-K9 swaps the Quad Camera for the PTZ 4K Camera, trading the four-sensor fixed array for mechanical pan, tilt and longer optical reach; rooms that need to frame a presenter far from the screen justify that swap, while typical table-seated meetings do not.
4. Audio Console Access Needs The Integrator Key
The full Audio API and Audio Console, plus third-party AES67 attachment, unlock only with the AV Integrator option key, so an installed-audio design that assumed DSP-level tuning has to carry that key as its own line rather than expect it inside the bundle.
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
Quad Camera power supply |
Confirm PSU-12VDC-70W-GR= is present for the camera. |
Cisco requires this specific supply for the Quad Camera, so a missing unit leaves the camera unpowered at commissioning. |
|
PoE++ budget allocation |
Confirm the combined draw of camera, Room Navigator and any AV over IP peripherals fits inside the 90W codec budget. |
Exceeding the shared budget starves a peripheral that was assumed to be powered by the codec. |
|
CUCM device pack |
Confirm CUCM runs version 12.5 or later with the Room Kit EQ device pack before turn-up. |
An older cluster or missing device pack blocks native registration for the delivered bundle. |
|
Compliance model numbers |
Confirm the delivered components report TTC6-15, TTC8-10 and TTC5-15. |
Confirms all three bundle components are accounted for, since an incomplete bundle is hard to reconcile against a single PID. |
|
AV Integrator option key |
Confirm the key is ordered when the design needs Audio Console, the full Audio API or AES67 third-party audio. |
Advanced audio tuning is locked without it, which surfaces only during commissioning of an installed audio system. |
|
Ethernet cable lengths |
Confirm CAB-ETH or CAB-CAT5E lengths match the camera, controller and peripheral runs, using CAB-CAT5E-CMP-20M or CAB-CAT5E-CMP-30M where plenum rating is required. |
PoE++ device positions are fixed by cable reach, and a plenum space rejects non-rated cable at inspection. |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | CS-KIT-EQ-K9 | Cisco ordering description | Cisco Room Kit EQ – First Light |
| Bundle scope | CS-CODEC-EQ-K9 Codec EQ, CS-QUADCAM2 Quad Camera and CS-T10-TS-L Room Navigator for Table | Compliance model numbers | TTC6-15, TTC8-10 and TTC5-15 |
| Camera sensors | Four CMOS image sensors with machine intelligent switching at up to 20MP per sensor, combined into a single 1080p output | Camera optics | 7x zoom from 5x native optical zoom with digital enhancement, f/2.0 aperture, 1/1.7 CMOS |
| Camera field of view | 83 degrees horizontal on the wide lens and 50 degrees horizontal on the three tele-lenses | Camera resolution | 5056 x 3888 pixels |
| Camera intelligence | Automatic group framing with audio and face detect, speaker tracking, Frames camera mode and meeting zones | Camera focus | Automatic focus, brightness and white balance with focus distance 1 m to infinity, up to 60 fps |
| Camera control | Ethernet (LAN) | Video standards | H.264, H.265, H.263 and AV1 |
| Video inputs | One USB-C up to 3840 x 2160 at 30 fps, three HDMI up to 3840 x 2160 at 30 fps including 1920 x 1080 at 60 fps with HDCP 1.4 on one input, and four PoE++ 1 Gb Ethernet ports for video over IP | Video over IP capacity | Up to three streams at 1920 x 1080 at 60 fps or one stream at 3840 x 2160 at 30 fps |
| Video outputs | Three HDMI outputs up to 3840 x 2160 at 60 fps with CEC 2.0 and interactive touch screen support over HDMI out plus USB-A | Encode and decode | Main video 1920 x 1080 at 60 fps and presentation channel 3840 x 2160 at 15 fps |
| USB passthrough | One USB 3.2 gen1 at up to 5 Gbps carrying camera, microphone and speakers over a single USB-C cable | Bandwidth | Up to 20 Mbps, with 1472 kbps minimum for 1080p30 and 2560 kbps for 1080p60 |
| Audio standards | G.711, G.722, G.722.1, G.729, AAC-LD and Opus | Audio features | 20 kHz full-band audio, acoustic echo cancellation, active lip synchronization, AI-powered adaptive noise removal, automatic gain control, full duplex, Self-Hear and Ultrasound Technology |
| Audio inputs | Three mini jack analog, three HDMI, one USB-C, one USB-A, four PoE++ Ethernet for audio over IP, up to eight Cisco IP microphones and AES67 third-party systems with the AV Integrator License | Audio outputs | One analog line out, three HDMI audio outputs, one USB-A, one USB-C and four PoE++ Ethernet for audio over IP |
| Loudspeakers | Quad Camera loudspeaker system with a single full-range driver and dual low-frequency drivers | Network interface | One Ethernet RJ-45 10/100/1000 for LAN plus four PoE++ 802.3bt RJ-45 10/100/1000 ports |
| PoE++ power budget | Up to 90W total across the four 802.3bt ports for camera, Room Navigator and AV over IP peripherals | Wireless | Wi-Fi 802.11a/b/g/n/ac/ax on 2.4 GHz, 5 GHz and 6 GHz with 2×2 MIMO; Wi-Fi 6E absent in non-radio versions |
| Other interfaces | Four USB-A 3.0 ports at up to 1.5A charging each, Bluetooth and Bluetooth Low Energy absent in non-radio versions, Micro USB service port and factory reset pinhole | Call control | Native CUCM registration requiring version 12.5 or later with the Room Kit EQ device pack, native Cisco Expressway registration, Webex, third-party H.323 gatekeepers and SIP proxies |
| Firewall traversal | Cisco Expressway technology with H.460.18 and H.460.19 | Wireless sharing | Webex App up to 3840 x 2160 at 7.5 fps including 1920 x 1080 at 30 fps, Miracast and Apple AirPlay |
| Network diagnostics | Network-level diagnostics and observability with Cisco ThousandEyes integration | Power input | 100 to 240 VAC at 50/60 Hz |
| Power consumption | 18W in an active meeting, 18W idle and 15W with display off in standby | Camera power supply | Quad Camera must be used with PSU-12VDC-70W-GR= |
| Operating temperature | 0 to 35 degrees C for Quad Camera; 0 to 40 degrees C for Room Navigator and Codec EQ | Operating humidity | 10% to 90% relative humidity |
| Storage and transport | -20 to 60 degrees C at 10% to 90% RH noncondensing | Quad Camera dimensions | 37.4 x 4.7 x 4.0 in (95.0 x 12.0 x 10.3 cm) at 10.6 lb (4.8 kg) |
| Codec EQ dimensions | 18.6 x 1.7 x 8 in (47.3 x 4.4 x 20.2 cm) at 5.1 lb (2.33 kg) | Mounting | Quad Camera above or beneath the screens or wall mounted; Codec EQ wall mounted, rack eared or free-standing |
| Camera color options | First Light and Carbon Black | Locking mechanism | Kensington security lock on the Codec EQ |
| Advanced audio unlock | Full Audio API and Audio Console with the AV Integrator option key, also required for AES67 | Accessory part numbers | CS-CODEC-EQ-ANT=, PSU-12VDC-70W-GR=, CAB-ETH-1.5M-GR, CAB-ETH-3M-GR, CAB-ETH-5M-GR, CAB-CAT5E-4M, CAB-CAT5E-8M, CAB-CAT5E-12M, CAB-CAT5E-CMP-20M and CAB-CAT5E-CMP-30M |
| Approvals and compliance | Directive 2014/53/EU for radio versions, Directives 2014/30/EU and 2014/35/EU for non-radio versions, RoHS 2011/65/EU, WEEE 2002/96/EU and NRTL product safety |
