CS-DESKMINI-C-K9 – Carbon Black 15.6-inch Touch Display – USB-C BYOD – Cisco Desk Mini
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
CS-DESKMINI-C-K9 Description

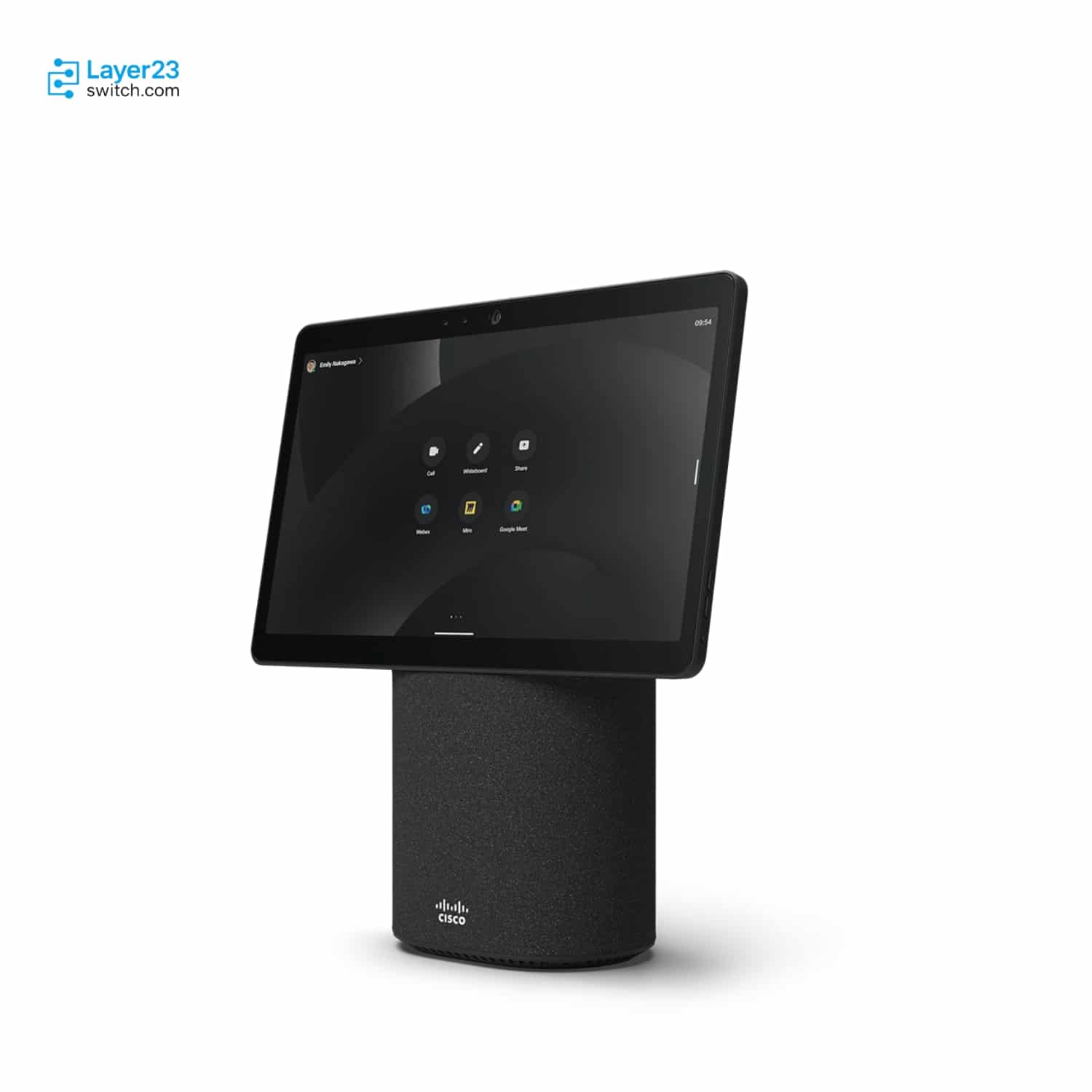

The CS-DESKMINI-C-K9 is the Carbon Black ordering finish of the Cisco Desk Mini at compliance model TTC9-01, with CS-DESKMINI-C-K9= as its spare part number. Hardware matches the First Light gray CS-DESKMINI-K9 exactly and only the enclosure color differs. The unit is an all-in-one personal endpoint built around a 15.6-inch IPS LED touch display at 1080p, fixed on an 11-degree tilt with the display and camera raised to a 7.9-inch height. The camera covers 64 degrees horizontally and 50 degrees vertically at f/2.0 on an 8MP sensor behind a privacy shutter whose front LED signals incoming calls and camera activation. A 3-element microphone system handles angle estimation while a single-channel loudspeaker with an 18mm tweeter and dual force-cancelling 80mm woofers reaches 65 Hz to 20 kHz at up to 92 dB. One USB-C cable delivers display extension at 1920 x 1080 at 60 fps, touch redirect and camera, microphone and speaker passthrough to any software client, and the unit attaches over a single 10/100/1000 Ethernet port running Room OS 11 or later.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
CS-DESKMINI-C-K9 |
|
Display |
15.6-inch IPS LED touch panel at 1080p 16:9 in Carbon Black |
|
Camera |
8MP sensor at f/2.0 with 64-degree horizontal and 50-degree vertical field of view |
|
Audio inputs |
3-element microphone system with USB-C, USB and Bluetooth audio in |
|
Loudspeaker |
18mm tweeter with dual force-cancelling 80mm woofers at 92 dB maximum SPL |
|
USB-C BYOD |
1920 x 1080 at 60 fps display extension, touch redirect and device passthrough |
|
Network interface |
One Ethernet RJ-45 10/100/1000 for LAN |
|
Power |
Rated 60W maximum with 7.5W networked standby and 0.3W powered off |
|
Software compatibility |
Room OS 11 or later |
Application Scenarios
Installed at executive desks specified with dark furniture and fittings, where the Carbon Black enclosure matches the desk standard rather than sitting against it.
Deployed at positions used for recorded or streamed appearances, where a dark device body stays visually neutral behind the participant in shot.
Placed at desks in dimmed or low-ambient spaces, with the raised 7.9-inch display height keeping the camera at eye level for the seated user.
Selection Guide
1. Carbon Desk Standard And Its Own Spare
CS-DESKMINI-C-K9 supplies the Desk Mini in Carbon Black where CS-DESKMINI-K9 supplies First Light gray; display, camera, microphone system, loudspeaker, USB-C behavior, power figures and compliance model TTC9-01 are identical, so the decision between them is a desk finish requirement and nothing else. Three practical points carry across either finish: each finish keeps its own spare part number, so a mixed estate has to stock CS-DESKMINI-C-K9= separately from the gray spare; embedded multipoint conferencing arrives through the LIC-DESK-MS software option rather than the hardware PID; and the box holds only the unit, a USB-C cable and a power cable, so a wired desk needs CAB-ETH-3M-GR= and an annotation workflow needs the stylus kit as their own order lines. Sites that forbid on-board wireless cannot use this finish at all, since the no-radio editions CS-DESKMINI-NR-K9 and CS-DESKMINI-NR-K7 are listed only in First Light gray.
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | CS-DESKMINI-C-K9 | Cisco ordering description | Cisco Desk Mini (Carbon Black) upfront GPL |
| Compliance model number | TTC9-01 | Spare part number | CS-DESKMINI-C-K9= |
| Display | 15.6-inch LCD monitor at 1080p resolution (16:9) on an IPS LED panel | Display characteristics | 700:1 typical contrast, plus or minus 85 degree typical viewing angle, 250 cd/m2 brightness, 16.7M colors and 72% NTSC gamut equal to 95% sRGB |
| User interface | Projected capacitive multi-touch | Supported PC resolution | 1080p60 |
| Camera field of view | 64 degrees horizontal and 50 degrees vertical at f/2.0 | Image sensor | 8MP supporting up to 30 fps on 1/3.2-inch CMOS |
| Camera adjustment | Automatic tilt adjustment with automatic focus, brightness and white balance, focus distance 20 cm to infinity | Camera privacy | Privacy shutter with front LED light for incoming calls and camera activation |
| Video standards | H.263 and H.264 AVC | Video input | USB-C DisplayPort alternate mode up to 1920 x 1080p60 |
| Encode and decode | Video stream at full HD 1080p60 with content stream at 4K 2160p15 and full HD 1080p60 | Audio standards | G.711, G.722, G.722.1, G.729, AAC-LD and Opus |
| Audio features | Acoustic echo cancellation, active lip synchronization, automatic gain control, focused sound pickup, de-reverberation and full duplex | Audio inputs | Premium 3-element microphone system for angle estimation, audio in from USB-C, USB and Bluetooth |
| Audio outputs | USB headset and Bluetooth headset | Integrated loudspeaker | Premium single-channel system with 18mm tweeter and dual force-cancelling 80mm woofers, 65 Hz to 20 kHz at 85 dBSPL and 92 dB maximum SPL |
| USB-C BYOD | Display extension at 1920 x 1080 at 60 fps with Alt-mode DisplayPort, touch redirect on supported operating systems, and camera, microphone and speaker use by any software client | Other USB ports | One standard type-A port for headsets and handsets plus one micro-B service port |
| Network | One Ethernet RJ-45 10/100/1000 for LAN | Sensors | Experimental temperature and humidity reporting to Control Hub analytics |
| Power input | 0.5A to 0.3A at 100 to 240V and 50 to 60Hz, rated 60W maximum | Power consumption | 7.5W networked standby and 0.3W powered off |
| Dimensions | 14.6 x 16.25 x 5.3 in (37.1 x 41.3 x 13.5 cm) at 8.5 lb (3.9 kg) | Packaged dimensions | 21.4 x 18.8 x 11 in (54.6 x 48 x 28 cm) at 17 lb (8.04 kg) |
| Ergonomic design | Fixed screen tilted 11 degrees with raised display and camera at 7.9 in display height | Physical buttons | Power button and volume buttons |
| Operating temperature | 0 to 35 degrees C at 20% to 90% relative humidity | Storage and transport | -20 to 60 degrees C at 10% to 90% RH noncondensing |
| Software compatibility | Room OS 11 or later | Default components | Cisco Desk Mini, USB-C cable and power cable |
| Optional hardware | Stylus kit and Ethernet cable | Software option and accessory | LIC-DESK-MS MultiSite embedded multipoint and CAB-ETH-3M-GR= 3 meter grey Ethernet cable |
