C8375-E-G2 Description
The C8375-E-G2 is a Cisco 8300 Series Secure Router, a 1 RU modular platform for large branch sites whose interface mix changes after install. The router has 2 x 10G SFP/SFP+ and 4 x 2.5G multigigabit RJ45 WAN ports, one NIM slot, one SM slot and one PIM cellular slot, and it forwards 38 Gbps with 20 Gbps of IPsec. The default 400W AC supply carries no PoE, so the 360W PoE budget exists only on the 760W AC + PoE supply.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C8375-E-G2 |
|
Platform type |
Modular platform, 1 RU |
|
WAN ports |
2 x 10G SFP/SFP+ and 4 x 2.5G mGig RJ45 with 2x UPoE+ |
|
Expansion slots |
1 x NIM and 1 x SM |
|
Cellular slot |
1 x PIM |
|
Default power supply model |
400W AC internal FRU, dual PSU (PWR-CC1-400WAC) |
|
Power supply (upgrade options) |
760W AC + PoE (PWR-CC1-760WAC), or 500W DC (PWR-CC1-500WDC) |
|
Default PoE budget |
None; the default 400W AC supply carries no PoE |
|
Maximum PoE budget with the 760W AC + PoE supply |
360W |
|
Forwarding throughput |
38 Gbps at 512 bytes |
|
DRAM |
16 GB, upgradeable to 32 GB |
|
Minimum software release |
Cisco IOS XE 17.15.3 |
Product Performance
Key Features
One NIM slot and one SM slot take serial, async, DSL, switch or carrier-card modules after deployment, and a separate PIM slot holds the cellular module. The six fixed ports are the only interfaces that do not depend on a module.
The 760W AC + PoE supply provides a 360W budget for the two UPoE+ ports. The default 400W AC supply provides none, so a site that powers endpoints from the router needs the PoE supply.
Power Supply Slot 0, Power Supply Slot 1 and the fan tray assembly are all field replaceable. A failed supply or fan is a parts swap on the rack.
DRAM starts at 16 GB and goes to 32 GB. An M.2 slot takes eUSB or SED storage, and the storage options run from 16 GB by default to 2 TB.
The NEBS operating range is -5 to 55 degrees C up to 6000 feet, against 0 to 45 degrees C up to 6000 feet for the standard range.
The chassis accepts 85 to 264 VAC or -40 to 72V DC at 48V nominal. A DC-fed site uses the 500W DC supply.
Application Scenarios
A large branch whose WAN circuits will change after install can hold serial, async, DSL or switch modules in the NIM and SM slots and a cellular PIM in the PIM slot.
Central-office and utility cabinets that need the -5 to 55 degrees C NEBS operating range, or a 48V DC feed, can run the router from the 500W DC supply.
Cameras, access points or phones in a branch draw UPoE+ directly from the router on two of its 2.5G multigigabit RJ45 ports, fed by the 760W AC + PoE supply.
Product Comparison
|
Parameter |
C8375-E-G2 | ||
|---|---|---|---|
|
LAN ports |
Not applicable |
2 x 10G SFP/SFP+ |
Not applicable |
|
Expansion slots |
1 x NIM and 1 x SM |
Not applicable |
1 x NIM |
|
Power supply (upgrade options) |
760W AC + PoE (PWR-CC1-760WAC), or 500W DC (PWR-CC1-500WDC) |
230W AC + PoE |
150W AC for PoE |
|
Default PoE budget |
None; the default supply carries no PoE |
None; the default supply carries no PoE |
None; the default supply carries no PoE |
|
Maximum PoE budget with the PoE supply |
360W |
120W |
120W |
|
Forwarding (512B) |
38 Gbps |
38 Gbps |
19 Gbps |
|
IPsec (512B) |
20 Gbps |
20 Gbps |
5 Gbps |
|
DRAM |
16 GB, upgradeable to 32 GB |
16 GB (fixed) |
16 GB |
C8375-E-G2 and C8355-G2 forward at the same 38 Gbps, so the split is the chassis: C8375-E-G2 is modular with 1 NIM slot and 1 SM slot, while C8355-G2 is fixed with no NIM or SM bay and adds 2 x 10G SFP/SFP+ on the LAN side. Designs that need an SM module or a NIM, or more than 120W of PoE, stay on C8375-E-G2, which reaches 360W with the 760W AC + PoE supply against 120W on C8355-G2 and C8235-E-G2. Branches with a settled port plan and no module roadmap can take C8355-G2. Sites that need one NIM, no SM and 19 Gbps of forwarding can take C8235-E-G2.
PoE Power Planning
|
Planning Item |
Value or Check |
|---|---|
|
PoE on the default supply |
None; the default 400W AC internal FRU supply carries no PoE budget |
|
PoE budget with the upgrade supply |
360W with the 760W AC + PoE power supply |
|
UPoE+ capable ports |
2 of the 4 multigigabit RJ45 WAN ports |
|
Device count check |
Confirm total endpoint draw across the two UPoE+ ports against the 360W budget |
|
Power supply line item |
Confirm the 760W AC + PoE supply is on the order whenever any port must deliver power |
|
Dual supply population |
Confirm both Power Supply Slot 0 and Slot 1 are populated if the site requires supply redundancy |
Ordering Checklist
- Power supply: Choose the default 400W AC internal FRU, the 760W AC + PoE supply (360W PoE budget) or the 500W DC supply. The default carries no PoE, so a site powering UPoE+ endpoints or fed from a DC plant needs a different supply.
- NIM and SM modules: Add the NIM or SM, such as C-NIM-4X, C-NIM-WAN-2X or SM-X-1T3/E3, or C-SM-NIM-ADPT to hold two NIMs in the SM slot. The faceplate has no LAN ports, so interfaces beyond the six fixed ports come only from modules.
- Cellular PIM: Select the regional P-LTEA7-NA, P-LTEA7-EAL or P-LTEA7-JP, or the global P-5GS6-R16SA-GL. The LTE PIMs are listed per region and the 5G Sub-6 PIM as global, so the PID follows the install region.
- Memory and storage: Choose DRAM of 16 GB (default) or 32 GB, and storage of 16 GB (default), 32 GB, 600 GB or 2 TB. Both are chosen on the order.
Optional Add-ons
|
Add-on |
Description |
|---|---|
|
C-NIM-WAN-2X |
2-port 1/10Gbps SFP/SFP+ NIM with WAN MACsec. |
|
C-NIM-WAN-4S |
4-port 1Gbps SFP NIM with WAN MACsec. |
|
4-port 1/10 Gbps SFP/SFP+ switch NIM with LAN/WAN MACsec and optional Layer 3. | |
|
8-port 100 Mbps/1 Gbps switch NIM with LAN/WAN MACsec and optional Layer 3. | |
|
8-port 100M/1/2.5 Gbps switch NIM with UPOE+, LAN/WAN MACsec and optional Layer 3. | |
|
C-SM-16P4M2X |
22-port Catalyst Layer 2 switch module with UADP ASIC. |
|
Single-wide carrier module holding two NIMs in an SM-X form factor. | |
|
NIM-VAB-A |
Multi-mode VDSL2/ADSL/2/2+ NIM, Annex A. |
|
NIM-VA-B |
Multi-mode VDSL2/ADSL/2/2+ NIM, Annex B. |
|
NIM-VAB-M |
Multi-mode VDSL2/ADSL/2/2+ NIM, Annex M. |
|
SM-X-1T3/E3 |
1-port clear-channel T3/E3 service module. |
|
1-port serial high-speed WAN interface card. | |
|
2-port serial high-speed WAN interface card. | |
|
4-port serial high-speed WAN interface card. | |
|
16-port asynchronous module. | |
|
24-port asynchronous module. | |
|
SM-X-64A |
64-port asynchronous module. |
|
P-5GS6-R16SA-GL |
5G Sub-6 GHz pluggable, 5G SA Global. |
|
P-LTEA7-NA |
CAT7 LTE Advanced pluggable, North America. |
|
P-LTEA7-EAL |
CAT7 LTE Advanced pluggable, EMEA, APAC and LATAM. |
|
P-LTEA7-JP |
CAT7 LTE Advanced pluggable, Japan. |

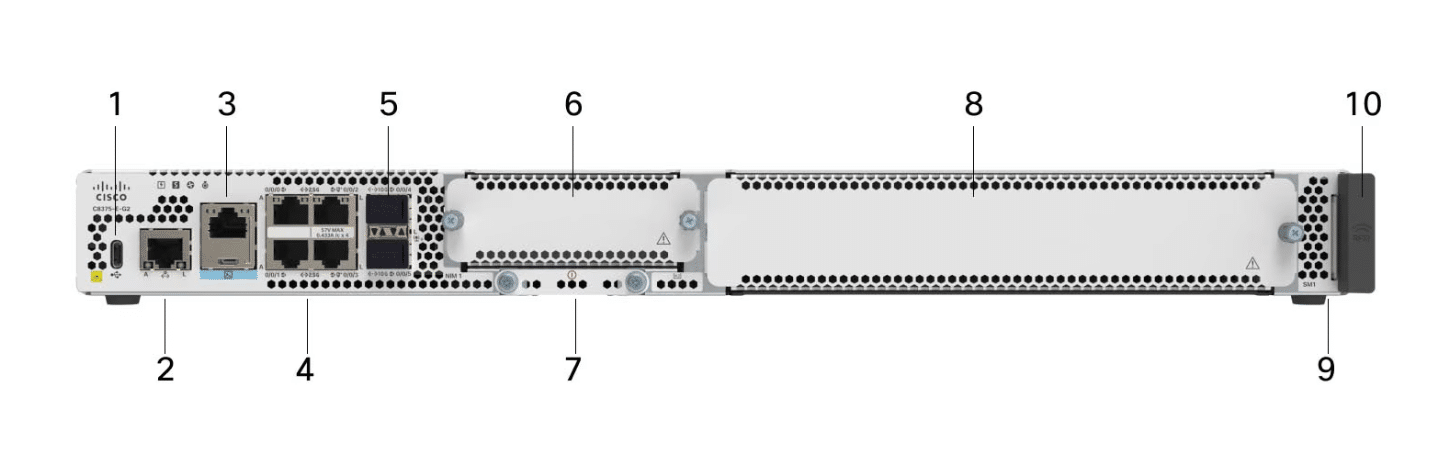

Front Panel
|
Label 7856_f2ad5e-b2> |
Description 7856_fc85ca-47> |
|---|---|
|
1 7856_7eb4a2-76> |
USB 3.0 Type C Storage 7856_440255-95> |
|
2 7856_06ac9f-85> |
Management RJ45 Port 7856_8013f1-06> |
|
3 7856_5ec341-aa> |
Console RJ45 / Micro-USB Port 7856_5a0c35-54> |
|
4 7856_845945-81> |
4 x 2.5G Multigigabit RJ45 Port 7856_ef1ca7-18> |
|
5 7856_41e617-8c> |
2 x 10G SFP/SFP+ Port 7856_c9ddfa-34> |
|
6 7856_8d7fdb-1e> |
NIM Slot 7856_dc25f0-ee> |
|
7 7856_b4cda4-51> |
M.2 Storage Slot (eUSB / SED) 7856_964ef8-f8> |
|
8 7856_1d0d82-31> |
SM Slot 7856_d164d8-b1> |
|
9 7856_579880-68> |
Label Tray 7856_4891a9-d4> |
|
10 7856_0c8fb9-9f> |
RFID 7856_466205-95> |
Rear Panel
|
Label 7856_10e327-49> |
Description 7856_ccf177-d5> |
|---|---|
|
1 7856_cfd2a9-d6> |
Power Supply Slot 1 7856_596e57-bb> |
|
2 7856_cd376c-8e> |
Replaceable Fan Tray Assembly 7856_42a803-fb> |
|
3 7856_68e3e9-57> |
PIM Slot 7856_98919d-44> |
|
4 7856_35f7b8-43> |
Power ON/OFF Switch 7856_cb1fbf-80> |
|
5 7856_be65fd-db> |
Power Supply Slot 0 7856_ff0d14-99> |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C8375-E-G2 | Product type | Modular platform |
| WAN ports | 2 x 10G SFP/SFP+ and 4 x 2.5G mGig RJ45 with 2x UPoE+ | Flex ports | Not present on this platform |
| LAN ports | Not present on this platform | Expansion slots | 1 x NIM and 1 x SM |
| Cellular slot | 1 x PIM | Storage interface | USB 3.0 Type C |
| M.2 storage slot | eUSB or SED | Forwarding (512B) | 38 Gbps |
| DRAM | 16 GB default, upgradeable to 32 GB | SSD storage | 16 GB default, with 32 GB, 600 GB and 2 TB options |
| Series | Cisco 8300 Series Secure Routers | Asset tag | RFID |
| IPsec (512B) | 20 Gbps | SD-WAN (512B) | 12 Gbps |
| Threat protection (EMIX) | 7 Gbps | SD-WAN measurement basis | IPsec, QoS, Deep Packet Inspection and Flexible NetFlow enabled |
| Threat protection measurement basis | 100% DIA-NAT, NGFW, IPS, URLF and AMP enabled | IPsec tunnels | 3500 |
| IPv4 ACEs | 20K | NAT sessions | 1.5M |
| VRFs | 4000 | IPv4/IPv6 routes | 2M |
| IPv4 ACLs | 4000 | Management port | 1 x RJ45 out-of-band management |
| Console port | 1 x RJ45 and 1 x Micro-USB | Minimum software release | Cisco IOS XE 17.15.3 |
| Minimum SD-WAN manager release | Cisco Catalyst SD-WAN Manager 20.15.3 | Default power supply model | 400W AC internal FRU, dual PSU (PWR-CC1-400WAC) |
| Power supply slots | Power Supply Slot 0 and Power Supply Slot 1, field replaceable | Power supply (upgrade options) | 760W AC + PoE (PWR-CC1-760WAC), or 500W DC (PWR-CC1-500WDC) |
| Input voltage | AC: 85 to 264 VAC; DC: -40 to 72V, 48V nominal | Typical power consumption | 55W with the default supply and no modules |
| Default PoE budget | None; the default 400W AC supply carries no PoE | Maximum PoE budget with the 760W AC + PoE supply | 360W |
| Fan modules | Replaceable fan tray assembly | Rack units | 1 RU |
| Dimensions (H x W x D) | 1.73 in x 17.5 in x 16.25 in | Operating temperature | 0 to 40ยฐC up to 10,000 feet; 0 to 45ยฐC up to 6000 feet |
| NEBS operating temperature | -5 to 55ยฐC up to 6000 feet | Storage temperature | -40 to 70ยฐC |
| Relative humidity | 5 to 85 percent operating; 5 to 95 percent non-operating and storage |
