1. Positioning & Overview

The Cisco Catalyst 9300 Series is Cisco’s flagship stackable switching platform for modern enterprise access networks. Designed for high-density campus and branch deployments, it delivers secure, automated, and cloud-ready connectivity from 1 GbE up to multigigabit 25 GbE. Powered by Cisco’s latest UADP ASICs, the 9300 Series embeds hardware-based segmentation, real-time telemetry, and application hosting—making it the foundation of Cisco SD-Access, zero-touch provisioning, and experience-first networking.
cisco-catalyst-9300-series-datasheet

The family is divided into four lines to match different performance and budget requirements:

  • Catalyst 9300X – 100 Gbps modular uplinks, 1 Tbps StackWise-1T, and built-in 100 G hardware IPsec.
  • Catalyst 9300 – Flexible modular uplinks up to 40 Gbps/25 Gbps for mainstream campus access.
  • Catalyst 9300L – Fixed 1/10/40 Gbps uplinks for cost-optimized Layer 3 access.
  • Catalyst 9300LM – Compact form factor with fixed 25 Gbps uplinks—ideal for space-constrained or high-density Wi-Fi 6/6E environments.

2. Key Highlights & Benefits

  • 1 Tbps StackWise-1T Stacking
  • Up to eight switches operate as one with sub-second failover, ensuring always-on services.
  • Line-rate 100 G Hardware IPsec
  • Native encryption accelerates secure WAN or cloud edge tunnels with no performance penalty.
  • 90 W Cisco UPOE+ & 60 W UPOE
  • Powers Wi-Fi 6E access points, smart lighting, and collaboration endpoints over existing cabling.
  • Versatile Uplink Choices (1/10/25/40/100 G)
  • Hot-swappable network modules or fixed 25 G ports protect future bandwidth investments.
  • Meraki Cloud Monitoring & Management
  • “-M” SKUs onboard to Meraki Dashboard with a click for unified, cloud-delivered operations.
  • On-box Application Hosting & ThousandEyes
  • Embedded x86 cores run security gateways, sensors, or custom Docker apps at the edge.
  • StackPower Shared PSUs
  • Pool power supplies across the stack, dynamically reallocating PoE budget and improving redundancy efficiency.
  • Full Automation & Telemetry
  • gNMI, NETCONF/YANG, and model-driven streaming telemetry enable intent-based networking and AIOps integrations.

3. Product Series Comparison

Attribute

C9300X-48HX

C9300X-48TX

C9300X-48HXN

C9300X-24HX

Down-link ports

48×10 G mGig UPOE+

48×10 G mGig data

8×10 G+40×5 G mGig UPOE+

24×10 G mGig UPOE+

Uplink slot

Modular (≤4×100 G)

Modular (≤4×100 G)

Modular (≤4×100 G)

Modular (≤4×100 G)

Switching capacity

1760 Gbps

1760 Gbps

960 Gbps

800 Gbps

Forwarding rate

1309 Mpps

1309 Mpps

714 Mpps

655 Mpps

Default AC PSU

1100 W AC

715 W AC

1100 W AC

1100 W AC

Default PoE budget

590 W

—

690 W

735 W

PoE type (max/port)

UPOE+ (90 W)

—

UPOE+ (90 W)

UPOE+ (90 W)

4. Hardware-Spec Tables

Cisco Catalyst 9300X

Attribute

C9300X-48HX

C9300X-48TX

C9300X-48HXN

C9300X-24HX

Down-link ports

48×10 G mGig UPOE+

48×10 G mGig data

8×10 G+40×5 G mGig UPOE+

24×10 G mGig UPOE+

Uplink slot

Modular (≤4×100 G)

Modular (≤4×100 G)

Modular (≤4×100 G)

Modular (≤4×100 G)

Switching capacity

1760 Gbps

1760 Gbps

960 Gbps

800 Gbps

Forwarding rate

1309 Mpps

1309 Mpps

714 Mpps

655 Mpps

Default AC PSU

1100 W AC

715 W AC

1100 W AC

1100 W AC

Default PoE budget

590 W

—

690 W

735 W

PoE type (max/port)

UPOE+ (90 W)

—

UPOE+ (90 W)

UPOE+ (90 W)

Attribute

C9300X-24Y

C9300X-12Y

Down-link ports

24×25 G SFP28 data

12×25 G SFP28 data

Uplink slot

Modular (≤4×100 G)

Modular (≤4×100 G)

Switching capacity

2000 Gbps

1000 Gbps

Forwarding rate

1488 Mpps

744 Mpps

Default AC PSU

715 W AC

715 W AC

Default PoE budget

—

—

PoE type (max/port)

—

—

Cisco Catalyst 9300

Attribute

C9300-24T

C9300-24P

C9300-24U

C9300-24UX

Down-link ports

24×1 G data

24×1 G PoE+

24×1 G UPOE

24×10 G mGig UPOE

Uplink slot

Modular

Modular

Modular

Modular

Switching capacity

208 Gbps

208 Gbps

208 Gbps

640 Gbps

Forwarding rate

155 Mpps

155 Mpps

155 Mpps

476 Mpps

Default AC PSU

350 W AC

715 W AC

1100 W AC

1100 W AC

Default PoE budget

—

445 W

830 W

560 W

PoE type (max/port)

—

PoE+ (30 W)

UPOE (60 W)

UPOE (60 W)

Attribute

C9300-24UB

C9300-24UXB

C9300-24H

C9300-24S

Down-link ports

24×1 G UPOE

24×10 G mGig UPOE

24×1 G UPOE+

24×1 G SFP data

Uplink slot

Modular

Modular

Modular

Modular

Switching capacity

208 Gbps

640 Gbps

208 Gbps

208 Gbps

Forwarding rate

155 Mpps

476 Mpps

155 Mpps

155 Mpps

Default AC PSU

1100 W AC

1100 W AC

1100 W AC

350 W AC

Default PoE budget

830 W

560 W

830 W

—

PoE type (max/port)

UPOE (60 W)

UPOE (60 W)

UPOE+ (90 W)

—

Attribute

C9300-48T

C9300-48P

C9300-48U

C9300-48UXM

Down-link ports

48×1 G data

48×1 G PoE+

48×1 G UPOE

48×(12 mGig) UPOE

Uplink slot

Modular

Modular

Modular

Modular

Switching capacity

256 Gbps

256 Gbps

256 Gbps

580 Gbps

Forwarding rate

190 Mpps

190 Mpps

190 Mpps

432 Mpps

Default AC PSU

350 W AC

715 W AC

1100 W AC

1100 W AC

Default PoE budget

—

437 W

822 W

490 W

PoE type (max/port)

—

PoE+ (30 W)

UPOE (60 W)

UPOE (60 W)

Attribute

C9300-48UN

C9300-48UB

C9300-48H

C9300-48S

Down-link ports

48×5 G UPOE

48×1 G UPOE

48×1 G UPOE+

48×1 G SFP data

Uplink slot

Modular

Modular

Modular

Modular

Switching capacity

640 Gbps

256 Gbps

256 Gbps

256 Gbps

Forwarding rate

476 Mpps

190 Mpps

190 Mpps

190 Mpps

Default AC PSU

1100 W AC

1100 W AC

1100 W AC

350 W AC

Default PoE budget

645 W

822 W

822 W

—

PoE type (max/port)

UPOE (60 W)

UPOE (60 W)

UPOE+ (90 W)

—

Cisco Catalyst 9300L

Attribute

C9300L-24T-4G

C9300L-24T-4X

C9300L-48T-4G

C9300L-48T-4X

Down-link ports

24×1 G data

24×1 G data

48×1 G data

48×1 G data

Fixed uplinks

4×1 G

4×10 G

4×1 G

4×10 G

Switching capacity

56 Gbps

128 Gbps

104 Gbps

176 Gbps

Forwarding rate

42 Mpps

95 Mpps

77 Mpps

131 Mpps

Default AC PSU

350 W internal

350 W internal

350 W internal

350 W internal

Default PoE budget

—

—

—

—

PoE type (max/port)

—

—

—

—

Attribute

C9300L-24P-4G

C9300L-24P-4X

C9300L-48P-4G

C9300L-48P-4X

Down-link ports

24×1 G PoE+

24×1 G PoE+

48×1 G PoE+

48×1 G PoE+

Fixed uplinks

4×1 G

4×10 G

4×1 G

4×10 G

Switching capacity

56 Gbps

128 Gbps

104 Gbps

176 Gbps

Forwarding rate

42 Mpps

95 Mpps

77 Mpps

131 Mpps

Default AC PSU

715 W internal

715 W internal

715 W internal

715 W internal

Default PoE budget

505 W

505 W

505 W

505 W

PoE type (max/port)

PoE+ (30 W)

PoE+ (30 W)

PoE+ (30 W)

PoE+ (30 W)

Attribute

C9300L-48PF-4G

C9300L-48PF-4X

C9300L-24UXG-4X

C9300L-24UXG-2Q

Down-link ports

48×1 G PoE+

48×1 G PoE+

8×mGig+16×1 G UPOE

8×mGig+16×1 G UPOE

Fixed uplinks

4×1 G

4×10 G

4×10 G

2×40 G

Switching capacity

104 Gbps

176 Gbps

272 Gbps

352 Gbps

Forwarding rate

77 Mpps

131 Mpps

202 Mpps

262 Mpps

Default AC PSU

1100 W internal

1100 W internal

1100 W internal

1100 W internal

Default PoE budget

890 W

890 W

880 W

722 W

PoE type (max/port)

PoE+ (30 W)

PoE+ (30 W)

UPOE (60 W)

UPOE (60 W)

Attribute

C9300L-48UXG-4X

C9300L-48UXG-2Q

Down-link ports

12×mGig+36×1 G UPOE

12×mGig+36×1 G UPOE

Fixed uplinks

4×10 G

2×40 G

Switching capacity

392 Gbps

472 Gbps

Forwarding rate

292 Mpps

351 Mpps

Default AC PSU

1100 W internal

1100 W internal

Default PoE budget

675 W

675 W

PoE type (max/port)

UPOE (60 W)

UPOE (60 W)

Cisco Catalyst 9300LM

Attribute

C9300LM-48UX-4Y

C9300LM-48U-4Y

C9300LM-24U-4Y

C9300LM-48T-4Y

Down-link ports

8×10 G mGig+40×1 G UPOE

48×1 G UPOE

24×1 G UPOE

48×1 G data

Fixed uplinks

4×25 G

4×25 G

4×25 G

4×25 G

Switching capacity

440 Gbps

296 Gbps

248 Gbps

296 Gbps

Forwarding rate

327 Mpps

220 Mpps

185 Mpps

220 Mpps

Default AC PSU

1000 W internal

1000 W internal

600 W internal

600 W internal

Default PoE budget

790 W

790 W

420 W

—

PoE type (max/port)

UPOE (60 W)

UPOE (60 W)

UPOE (60 W)

—

5. Network & Security Features

Capability

What It Delivers

Where It Shines

Cisco SD-Access Fabric

Automated segmentation, policy-based routing, and zero-touch provisioning via Catalyst Center.

Large campuses, multi-building sites.

MACsec-256 Encryption

Line-rate Layer-2 encryption (256-bit keys) on every 1G/10G/25G/100G link.

Compliance-driven or shared-media environments.

Encrypted Traffic Analytics (ETA)

Detects malware in TLS-encrypted flows without decryption.

Early threat detection without privacy trade-offs.

Trust Anchor Technologies

Secure Boot, image signing, and runtime attestation protect against supply-chain tampering.

Any critical infrastructure node.

ThousandEyes Agent

Built-in x86 sensor measures SaaS and WAN performance from the switch itself.

Proactive user-experience monitoring.

ASA-c / App-Hosting

On-box Docker or KVM VMs run NGFW, SD-WAN, or custom edge apps.

Secure local breakout, branch consolidation.

6. Software & Licensing Options

Stack

Entry Tier

Advanced Tier

How to Activate

IOS XE Networking

Network Essentials – Core Layer-2/Layer-3, basic QoS, static routing.

Network Advantage – Full routing suite, BGP, PBR, advanced QoS, VRF-Lite.

Smart License token or CSSM satellite.

Cisco DNA

DNA Essentials – SD-Access automation, AI endpoint analytics (base).

DNA Advantage – Full SD-Access fabric, macro-segmentation, ETA, Software-Defined WAN edge.

Term-based subscription (3/5/7 years).

Meraki-M Cloud

—

Meraki Management add-on (-M SKUs) unlocks Meraki Dashboard monitoring & config.

Cloud claim code; billed yearly.

Smart Licensing Workflow
  1. Plug in the switch; connect to Cisco SSM or on-prem Satellite.
  2. Enter Smart Account & Token — entitlement is pulled automatically.
  3. View usage in Cisco Smart Software Manager; renew or reallocate as needed.

7. Management & Automation

Tool / Interface

Key Use Case

Cisco Catalyst Center

Policy design, SD-Access overlays, assurance, AI troubleshooting.

Meraki Dashboard (-M)

Cloud-hosted monitoring, firmware, and templated provisioning.

Embedded Web UI

Quick day-0/day-1 config without external tools.

Plug-and-Play (PnP)

Zero-touch onboarding via serial or DHCP option 43.

Programmatic APIs

NETCONF / RESTCONF / gNMI for intent automation.

Model-Driven Telemetry

gRPC-based streaming of interface, QoS, and health metrics at 1-s granularity.

8. Typical Deployment Scenarios

Scenario

At-a-Glance Description

Why Catalyst 9300

Three-Tier Campus Core–Distribution–Access

9300/9300L stacks serve as high-density access; uplink via 25 G or 40 G to distribution.

1 Tbps stacking + 90 W UPOE+ future-proof large buildings.

Branch SD-Access Fabric Edge

9300X provides fabric edge with built-in 100 G IPsec backhaul to HQ or cloud.

Hardware crypto + SD-Access automation reduces overlay complexity.

Smart Building / High-Power PoE

9300H/UPOE+ models power LED lighting, HVAC, and multisensor endpoints over one cable run.

90 W per port, StackPower pools budget across closets.

High-Density Wi-Fi 6/6E Floor

Compact 9300LM delivers 25 G uplinks and 60 W UPOE to every AP.

Eliminates access-layer bottlenecks for multigig radios.

9. Uplink Module, License and Cables

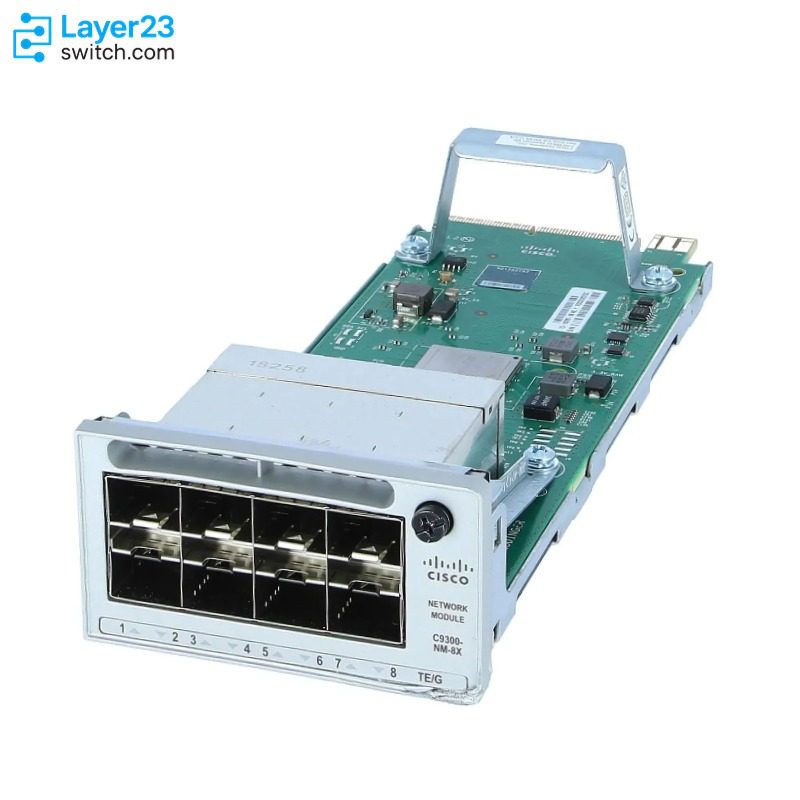

C9300-NM-8X
C9300-NM-4M
C9300-NM-4G
C9300-NM-2Y
C9300-NM-2Q

SKU

Description

C9300-NM-2Q

2×40G QSFP uplink module

C9300-NM-2Y

2×25G SFP28 uplink module

C9300-NM-4G

4×1G SFP uplink module

C9300-NM-4M

4×10G multigig uplink module

C9300-NM-8X

8×10G SFP+ uplink module

10. Ordering Information

SKU

Description

C9300-24H-A

24 90W UPOE+ mGig modular uplinks

C9300-24H-E

24 90W UPOE+ mGig modular uplinks

C9300-24P-A

24 PoE+ GbE modular uplinks

C9300-24P-E

24 PoE+ GbE modular uplinks

C9300-24S-A

24 SFP 1G modular uplinks

C9300-24S-E

24 SFP 1G modular uplinks

C9300-24T-A

24 GbE data modular uplinks

C9300-24T-E

24 GbE data modular uplinks

C9300-24U-A

24 UPOE GbE modular uplinks

C9300-24U-E

24 UPOE GbE modular uplinks

C9300-24UB-A

24 90W UPOE+ mGig modular uplinks

C9300-24UB-E

24 90W UPOE+ mGig modular uplinks

C9300-24UX-A

24 mGig UPOE+ modular uplinks

C9300-24UX-E

24 mGig UPOE+ modular uplinks

C9300-24UXB-A

24 90W UPOE+ mGig modular uplinks

C9300-24UXB-E

24 90W UPOE+ mGig modular uplinks

C9300-24UXG-2Q-A

24 mGig UPOE+ 2×40G QSFP uplinks

C9300-24UXG-2Q-E

24 mGig UPOE+ 2×40G QSFP uplinks

C9300-48H-A

48 90W UPOE+ mGig modular uplinks

C9300-48H-E

48 90W UPOE+ mGig modular uplinks

C9300-48P-A

48 PoE+ GbE modular uplinks

C9300-48P-E

48 PoE+ GbE modular uplinks

C9300-48S-A

48 SFP 1G modular uplinks

C9300-48S-E

48 SFP 1G modular uplinks

C9300-48T-A

48 GbE data modular uplinks

C9300-48T-E

48 GbE data modular uplinks

C9300-48U-A

48 UPOE GbE modular uplinks

C9300-48U-E

48 UPOE GbE modular uplinks

C9300-48UB-A

48 mGig UPOE+ 90W modular uplinks

C9300-48UB-E

48 mGig UPOE+ 90W modular uplinks

C9300-48UN-A

48 UPOE+ mGig modular uplinks

C9300-48UN-E

48 UPOE+ mGig modular uplinks

C9300-48UXM-A

48 mGig UPOE modular uplinks

C9300-48UXM-E

48 mGig UPOE modular uplinks

C9300L-24P-4G-A

24 PoE+ GbE 4×1G SFP uplinks

C9300L-24P-4G-E

24 PoE+ GbE 4×1G SFP uplinks

C9300L-24P-4X-A

24 PoE+ GbE 4×10G SFP+ uplinks

C9300L-24P-4X-E

24 PoE+ GbE 4×10G SFP+ uplinks

C9300L-24P-4X-M

24 PoE+ GbE 4×10G SFP+ uplinks

C9300L-24T-4G-A

24 GbE data 4×1G SFP uplinks

C9300L-24T-4G-A-1

24 GbE data 4×1G SFP uplinks

C9300L-24T-4X-A

24 GbE data 4×10G SFP+ uplinks

C9300L-24T-4X-E

24 GbE data 4×10G SFP+ uplinks

C9300L-24T-4X-M

24 GbE 4×10G SFP+ uplinks data only

C9300L-24UXG-4X-A

24 mGig UPOE+ 4×10G SFP+ uplinks

C9300L-24UXG-4X-E

24 mGig UPOE+ 4×10G SFP+ uplinks

C9300L-24UXG-4X-M

24 mGig UPOE+ 4×10G SFP+ uplinks

C9300L-48P-4G-A

48 PoE+ GbE 4×1G SFP uplinks

C9300L-48P-4G-E

48 PoE+ GbE 4×1G SFP uplinks

C9300L-48P-4X-A

48 PoE+ GbE 4×10G SFP+ uplinks

C9300L-48P-4X-E

48 PoE+ GbE 4×10G SFP+ uplinks

C9300L-48P-4X-M

48 PoE+ GbE 4×10G SFP+ uplinks

C9300L-48PF-4G-A

48 full PoE+ GbE 4×1G SFP uplinks

C9300L-48PF-4G-E

48 full PoE+ GbE 4×1G SFP uplinks

C9300L-48PF-4X-A

48 full PoE+ GbE 4×10G SFP+ uplinks

C9300L-48PF-4X-M

48 full PoE+ GbE 4×10G SFP+ uplinks

C9300L-48T-4G-A

48 GbE data 4×1G SFP uplinks

C9300L-48T-4G-A-1

48 GbE data 4×10G SFP+ uplinks

C9300L-48T-4G-E

48 GbE data 4×1G SFP uplinks

C9300L-48T-4X-E

48 GbE data 4×10G SFP+ uplinks

C9300L-48T-4X-E-2

48 full PoE+ GbE 4×10G SFP+ uplinks

C9300L-48T-4X-M

48 GbE 4×10G SFP+ uplinks data only

C9300L-48UXG-2Q-A

48 mGig UPOE+ 2×40G QSFP uplinks

C9300L-48UXG-2Q-E

48 mGig UPOE+ 2×40G QSFP uplinks

C9300L-48UXG-4X-A

48 mGig UPOE+ 4×10G SFP+ uplinks

C9300L-48UXG-4X-E

48 mGig UPOE+ 4×10G SFP+ uplinks

C9300L-48UXG-4X-M

48 mGig UPOE+ 4×10G SFP+ uplinks

C9300LM-24U-4Y-A

24 UPOE GbE 4×25G SFP28 uplinks

C9300LM-24U-4Y-E

24 UPOE GbE 4×25G SFP28 uplinks

C9300X-12Y-A

12×25G SFP28 aggregation switch

C9300X-12Y-E

12×25G SFP28 aggregation switch

C9300X-24HX-A

24 mGig UPOE+ 2×40G uplinks

C9300X-24HX-E

24 mGig UPOE+ 2×40G uplinks

C9300X-24Y-A

24×25G SFP28 aggregation switch

C9300X-24Y-E

24×25G SFP28 aggregation switch

C9300X-48HX-A

48-port UPOE+ 10 Gbps multigigabit access switch (Network Advantage)

C9300X-48HX-E

48-port UPOE+ 10 Gbps multigigabit access switch

C9300X-48HXN-A

48-port mixed UPOE+ multigig access switch

C9300X-48HXN-E

48-port UPOE+ mixed multigigabit access switch (8×10 Gbps + 40×5 Gbps) with modular uplinks

C9300X-48TX-A

48-port 10GBASE-T data-only switch

C9300X-48TX-E

48-port 10GBASE-T data-only access switch

Where To Buy

Want to buy this series of products? please contact:
● WhatsApp: +8613464386404
● Email: [email protected] (Sales Inquiries)

Or visit: Cisco Catalyst 9300 Series Switches

Sources

Cisco Catalyst 9300 Datasheet
